How exactly do solar panels work?

Solar panels, also known as photovoltaic (PV) panels, work by harnessing the energy from sunlight and converting it into electricity. The underlying principle behind their operation is the photovoltaic effect, which involves the generation of an electric current when certain materials are exposed to light. Below, you'll find a detailed breakdown of the functioning of solar panels:

1. Absorption of Photons: Solar panels are made up of multiple solar cells, typically composed of silicon or other semiconductor materials. When sunlight, which is composed of tiny packets of energy called photons, strikes the surface of a solar panel, the photons are absorbed by the semiconductor material.



2. Generation of Electron-Hole Pairs: The absorbed photons transfer their energy to electrons in the semiconductor material, allowing the electrons to break free from their normal positions in atoms. This creates "electron-hole pairs," where the electron is in an excited state and the hole is a positively charged position left behind.



3. Electric Field Formation: Within the semiconductor material, there is an internal electric field due to the way it is specially treated or doped. This electric field acts as a barrier that separates the electrons and holes.



4. Flow of Electrons: Due to the presence of the electric field, the free electrons are pushed towards the front surface of the solar cell, while the holes are pushed towards the back surface. This separation of charges creates a voltage difference between the front and back surfaces, resulting in an electric potential.



5. Generation of Electric Current: The electric potential causes the free electrons to move towards the front surface of the solar cell, creating an electric current. This current can then be collected and used as electricity. Metal conductive plates on the front and back of the solar cell allow for the collection of these electrons and the flow of electric current through an external circuit.



6. Conversion and Usage: The generated direct current (DC) electricity from the solar panels is typically converted into alternating current (AC) using an inverter. AC electricity stands as the prevalent type of electric power utilized in both residences and commercial establishments. Following its conversion, this form of electricity becomes viable for energizing appliances, illumination, and various other electrical apparatuses. Once converted, the electricity can be used to power appliances, lighting, and other electrical devices.

It's worth noting that the efficiency of solar panels can vary based on factors such as the quality of the semiconductor material, the angle of the panels in relation to the sun, and the amount of sunlight received. Advances in solar technology continue to improve the efficiency and affordability of solar panels, making them a more viable and sustainable source of energy for a wide range of applications.

Solar panels work by converting sunlight into electricity through a process called the photovoltaic (PV) effect. Here’s how it happens step by step:

• Sunlight Absorption: Solar panels are made up of many smaller units called solar cells, which are typically made from silicon. When sunlight hits these cells, it transfers energy to the atoms within the silicon.



• Electron Movement: The energy from the sunlight excites the electrons in the silicon, causing them to move. This movement of electrons generates an electric current.



• Direct Current (DC): The electricity produced in the solar cells is in the form of direct current (DC). This is similar to the type of electricity that powers devices like batteries. However, most homes and businesses use alternating current (AC) electricity.

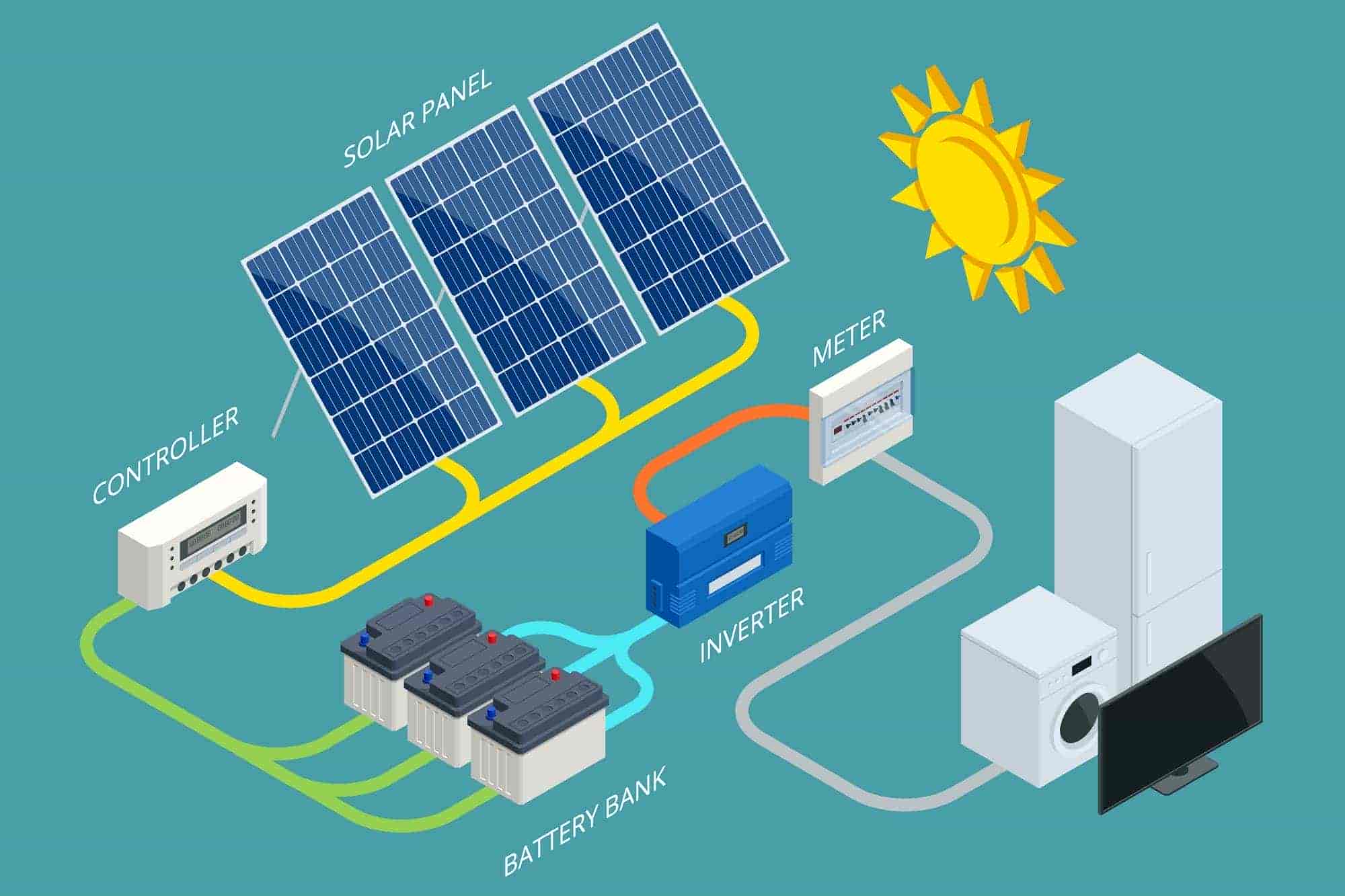

• Inverter Conversion: To make the DC electricity usable, a device called an inverter is used. It converts the DC electricity into AC electricity, which can then be fed into your home’s electrical system or sent to the grid.



• Grid Connection or Storage: If the solar panel system is connected to the electricity grid, any extra electricity generated can be fed into the grid. Alternatively, excess energy can be stored in batteries for later use.

In essence, solar panels capture sunlight and turn it into electrical energy that can be used for everything from lighting your home to powering appliances, reducing reliance on fossil fuels and lowering electricity bills. It’s a clean and renewable source of energy!
